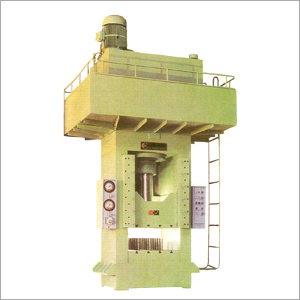

Straight Sided Deep Drawing Presses

Straight Sided Deep Drawing Presses
Straight Sided Deep Drawing Presses
Product Code : ABX-03
Brand Name : ABEXMATIC HYDRAULICS
Product Description

Owing to our strict quality procedure, we are successfully engaged in manufacturing, exporting and supplying a quality gamut of Straight Sided Deep Drawing Presses. The offered presses are manufactured under the surveillance of our experienced professionals using optimum quality components with the aid of innovative techniques. These presses are extensively used in forging industry for punching, bending, forging and turning operation on metal workpiece. Additionally, the provided Straight Sided Deep Drawing Presses can be purchased from us in various technical specifications at industry leading prices.


Features:

  • Easy to operate
  • Less maintenance
  • High accuracy
  • Excellent performance



Straight Sided Deep Drawing Presses

Sequence of Operations


When the operator places the sheet to be drawn on the press tool and presses the safety push buttons, the following sequence of operation takes place

  • The top ram will rapidly come down till it approaches the bottom tooling
  • A limit switch reduces the speed from rapid to pressing speed and therefore the ram starts the draw operation at reduced speed with the preset drawing tonnage.
  • When the drawing is complete another limit switch stops the downward of oil and reverses motion of ram at a rapid speed
  • The travel of the ram upwards is again controlled by another limit switch which can be located at any desired place.
  • Reversal of the main ram also can be associated with the return of the die cushion or by means of a selector switch it it possible to delay the cushion reversal by a preset duration
  • If a hydraulic ejector is provided in the main ram it will now get a signal for ejection and the component will be pushed out of the tooling.
The press is now ready for the next operation for which the operator will have to again press the safety push buttons.

Note

In case of triple acting presses with down stroking blank holder the sequence of operation will differ to the extent, that first the blank holder comes down and holds the blank under pressure followed by descent of the main ram while during reversal the ram will return first followed by the blank holder. The complete sequence of operation take place automatically without any operator's care.
