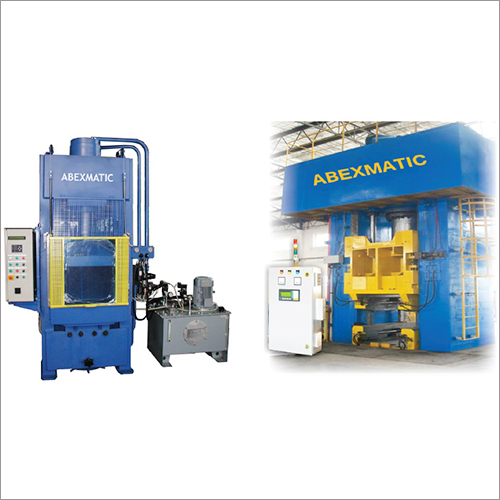

Multi Purpose Hydraulic Presses

Multi Purpose Hydraulic Presses
Multi Purpose Hydraulic Presses
Product Code : ABX-09
Brand Name : ABEXMATIC HYDRAULICS
Product Description

Being an ISO 9000:2001 certified enterprise, we are affianced in manufacturing, exporting and supplying a wide range of Multi Purpose Hydraulic Presses. The offered presses are manufactured under the strict guidance of experienced professionals with the aid of cutting edge techniques using quality tested components. These presses are commonly used in automobile industry for drawing, coining, trimming, punching and stamping on a given workpiece. Furthermore, our valued clients can get these Multi Purpose Hydraulic Presses in numerous technical specifications at reasonable prices.


Features:

  • Smooth operation
  • Power efficient
  • Easy to operate
  • High accuracy





Multi Purpose Hydraulic presses

 These presses are suitable for drawing, coining, trimming, punching, stamping & other general operations. These presses are fitted with PLC & LVDT for precision control & are highly rigid & compact in design & can be fitted with die cushioning arrangement for deep drawing.

Multi Purpose Hydraulic presses ABX-60 ABX-80 ABX-100 ABX-150 ABX-200 ABX-250 ABX-300 ABX-400 ABX-500 ABX-750 ABX-1000

General

Types of Press Straight Straight Straight sided Straight sided Straight sided Straight sided Straight sided 4 Coloumn 4 Coloumn 4 Coloumn 4
sided sided Coloumn
Max. Capacity-Tons 60 80 100 150 200 250 300 400 500 750 1000
Bed Size (table) LR X FB - mm 500 x 500 500 x 500 600 x 600 600 x 600 900 x 900 900 x 900 1600 x 1300 1830 x 1524 2100 x 1900 2800 x 2000 3000 x 2350
Main Ram Stroke 300 300 350 350 400 500 500 600 600 750 800
Open day light (Bed to ram) -mm 500 500 600 600 600 900 900 1200 1200 1500 1500
Table Height (from ground) (E) -mm 800 800 800 300 300 400 400 400 500 500 650
Space Between columns (LR x FB)(H x G) -mm 500 500 600 600 900 900 900 1830 x 900 2100 x 1100 2800 x 1200 3000 x 1350
Maximum job pass width -mm (Between side bearing) 350 350 450 450 700 700 700 1630 1900 2550 2700

HYDRAULIC SYSTEM

Motor H.P. 20 25 30 50 75 75 100 75 (2Nos.) 75 (2Nos.) 125 (2Nos.) 125 H.P. (2Nos)
Type of hydraulic system used Regenerative do do do Pre filling (by gravity) do do do do do do
Pump capacity ltrs/min 136/36 118/54 204/63 322/95 322/112 322/112 322/112 322/112 322/112 322/150 322/150
Hydraulic tank capacity ltrs. 500 500 800 1000 1000 1000 1000 1000 1000 1200 1200
Max operating Pressure Kg/cm 200 200 200 200 280 250 300 280 250 300 315

Note :- Specification given above are indicating and are subject to change.
