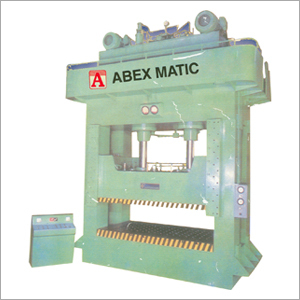

1200 Tons Hydraulic Press

1200 Tons Hydraulic Press
1200 Tons Hydraulic Press
Product Code : ABX-06
Brand Name : ABEXMATIC HYDRAULICS
Product Description

As an ISO 9000:2001 certified enterprise, we manufacture, export and supply best-in-class 1200 Tons Hydraulic Press. By keeping quality standards in mind, the provided press is manufactured under the vigilance of our adroit professionals using top-notch quality components with the aid of innovative techniques. This press is commonly used for stamping, flanging, blanking, bending and drawing of metals. Apart from this, the offered 1200 Tons Hydraulic Press can be purchased from us in different technical specifications at market leading prices.


Features:

  • PLC control panel
  • Rugged structure
  • Energy efficient
  • Smooth operation



1200 Tons Hydraulic Press

Technical Specification

Multi Purpose Presses     ABX - 60  ABX - 80
ABX - 100
ABX - 150
ABX - 200
ABX - 250
ABX - 300
ABX - 400
ABX - 500
ABX - 750
ABX - 1000
Type of press  Straight Sided  Straight Sided
Straight Sided
Straight Sided
Straight Sided
Straight Sided
Straight Sided
4 Column  4 Column
4 Column
4 Column
Max Capacity  Tons  60  80  100  150  200  250  300  400  500  750  1000
Bed Size(table)  mm  500 x 500  500 x 500
600 x 600
600 x 600
900 x 900
900 x 900
1600 x 1300
1830 x 1524
2100 x 1900
2800 x 2000
3000 x 2350
Open day light (Bed to ram)  mm
500  500  600  600  600  900  900  1200  1200  1500  1500
Table height (from ground) (E)  mm
800  800 800  300  300  400  400  400  500  500  650
Space Between Columns (LR x FB) (H x G)  mm
500  500 600  600  900  900  900  1830 x 900  2100 x 1100  2800 x 1200  3000 x 1350
Maximum job pass width Height(Between slide bearing) (F)   mm 350  350 450  450  700  700  700  1630  1900  2550  2700
Approx Dimensions  mm
3400 x 500x 800   3400 x 500 x 800
3700 x 600 x 1000   4000 x 600 x 1000   4400 x 1500 x 1500   4700 x 1500 x 1500   4700 x 1700 x 3000   5850 x 430 x 2324   5850 x 3800 x 2700   7800 x 4400 x 2800   8000 x 5000 x 3200
Height (C) x Depth (B) x Width (A)  mm
Hydraulic System
Motor H.P    20  25  30  50  75  75  100  75(2Nos)  75(2Nos)
125(2Nos)
125H.P(2Nos)
Type of hydraulic system used    Regenerative  -do-  -do-
-do-
Pre filling (By gravity)  -do-
-do-
-do-
-do-
-do-
-do-
Pump capacity ltrs / min    136 / 36  118 / 54  204 / 63  322 / 95  322/112  322/112  322/112  322/112(2 nos)  322/112(2 nos)
322/150(2 nos)
322/150(2 nos)
Hydraulic tank capacity ltrs.    500  500  800  1000  1000
1000
1000
1000
1000
1200  1200
Max operation Pressure kg/cm2    200  200  200
200
280  250  300  280  250  300  315
